G2RV-ST700 DC24

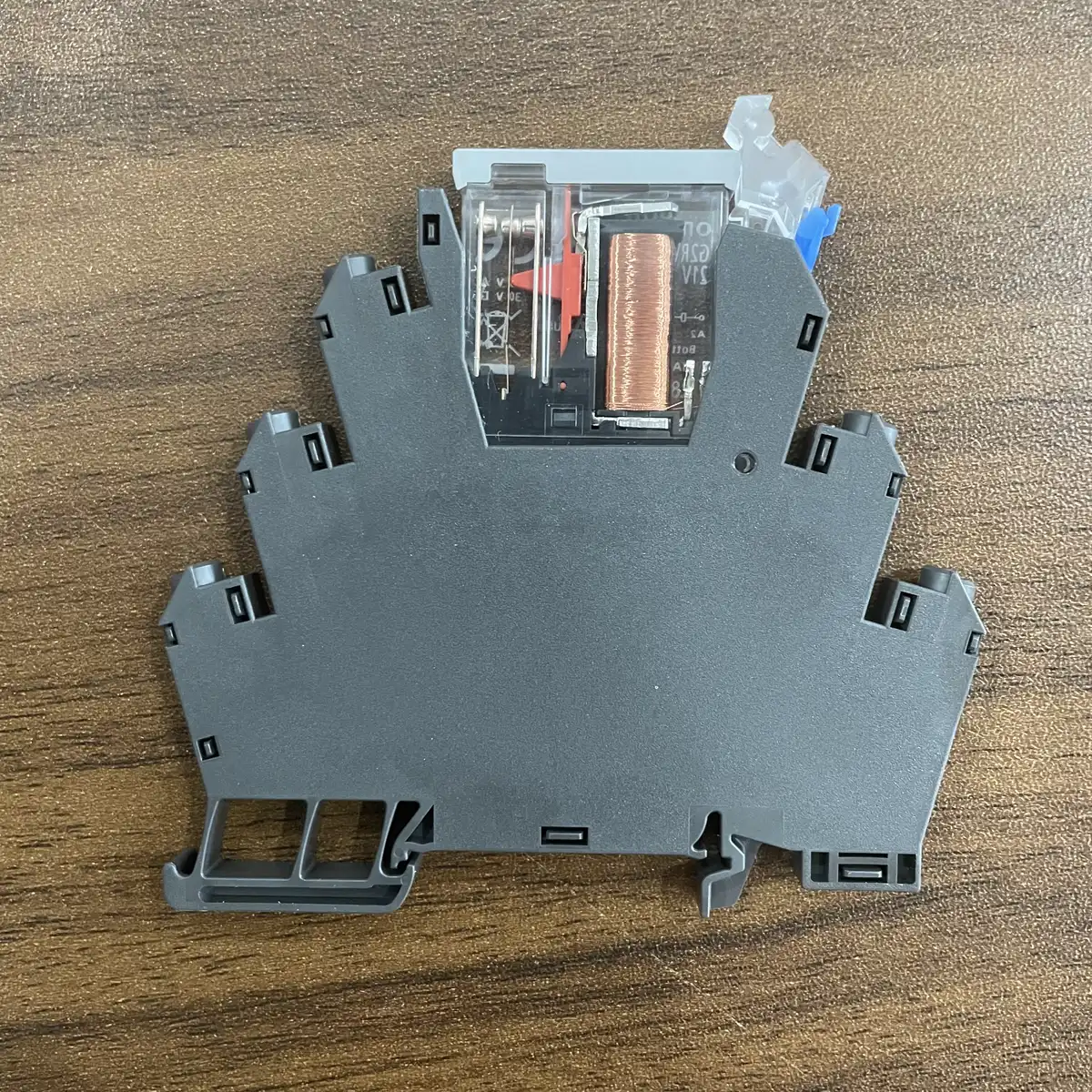

G2RV-ST700 DC24 Slim I/O Relay | 24VDC Industrial Relay | SPDT Contacts | Space-Saving Relay

SKU: G2RV-ST700 DC24

Omron G2RV-ST700 DC24 slim I/O relay with integrated socket, SPDT contacts, 6A switching. Compact 24VDC relay for space-constrained control panels and industrial applications.

Key Features

  • Ultra-slim design for high-density mounting in space-constrained panels
  • Integrated low-profile socket with screw terminals for easy installation
  • LED and mechanical operation indicators for clear status confirmation
  • High electrical endurance: 70,000 operations (NO contact) for long service life
  • SPDT contact configuration for versatile switching applications
Request Quote

Slim I/O Relay with Integrated Socket for Space-Constrained Control Panels

The Omron G2RV-ST700 DC24 Slim I/O Relay delivers reliable switching performance in an ultra-compact design ideal for high-density control panel applications. This space-saving relay features an integrated low-profile socket with screw terminals that eliminates the need for separate socket components, reducing installation space and wiring time. With a 24VDC coil and SPDT contact configuration, the relay provides versatile switching for both AC (250VAC 6A resistive) and DC (30VDC 6A resistive) loads in industrial control systems. The combination of LED and mechanical operation indicators ensures clear visual status confirmation, while the high electrical endurance rating of 70,000 operations (NO contact) guarantees long service life in demanding automation, machinery, and control applications where panel space is at a premium.

Technical Specifications

Coil Voltage 24 VDC
Coil Power Consumption Approx. 300 mW
Contact Configuration SPDT
Contact Material Ag alloy
AC Rated Load 250VAC 6A (Resistive), 250VAC 2.5A (Inductive)
DC Rated Load 30VDC 6A (Resistive), 30VDC 2A (Inductive)
Operating Time 20 ms max.
Electrical Endurance NO: 70,000 ops min., NC: 50,000 ops min.
Operating Temperature -40 to 55℃
Weight Approx. 30 g
